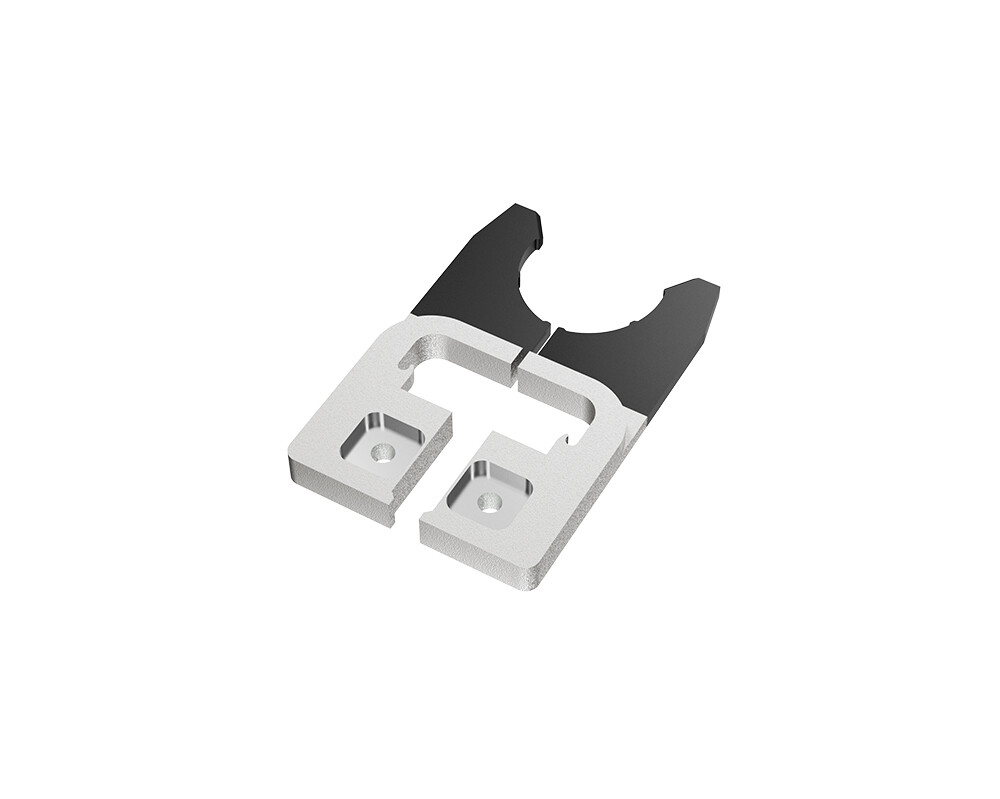

Bottle Clamp for Bottle Blowing Machine

In pharmaceutical and liquid food production lines requiring an absolute sterile barrier, as well as in cosmetics and beverage packaging where bottle appearance and seal integrity are strictly scrutinized, random bottle dropouts or neck crushes during high-speed blowing directly result in the scrapping of high-value batches of packaging materials. It can even trigger cascading risks of sterile boundary contamination. This type of non-OEM fault is often caused by the slip threshold of the bottle gripper being breached under alternating loads, forcing the entire line to slow down or halt for cleaning.

The core solution to this issue lies in the precise reconstruction of the gripper's tribological boundaries. We lock the Shore hardness of the polyurethane elastomer on the gripping lip in the 70A-75A range. Under this parameter, the dynamic clamping force converted from the clamping torque transmitted by the cam mechanism keeps the specific contact pressure precisely below the yield strength of the PET material (approximately 55 MPa). This setting eliminates microscopic plastic deformation in the thread area while stabilizing the dynamic friction coefficient at 0.4-0.45. This physical data rules out slippage during high-speed operation, ensuring uniform force distribution on the bottle neck without damaging the sealing surface required for subsequent filling.

Molds and accessories compatible with blow molding machines, filling machines, and labeling machines of brands such as Sidel, Krones, KHS, and Tetra Pak.

In terms of spare parts replacement, the base of this component utilizes a standardized error-proof relief groove, eliminating the need for installation orientation alignment. Quantified wear determination criteria dictate using a 0.05mm feeler gauge to measure the clearance tolerance in the closed state; the replacement threshold is reached when the clearance increment exceeds 0.15mm, or when deep fatigue micro-cracks appear on the gripping surface. The entire disassembly and assembly process requires no secondary grinding, directly compressing unplanned downtime to under 3 minutes per piece, significantly reducing the capital tie-up in inventory and line changeover time costs.
