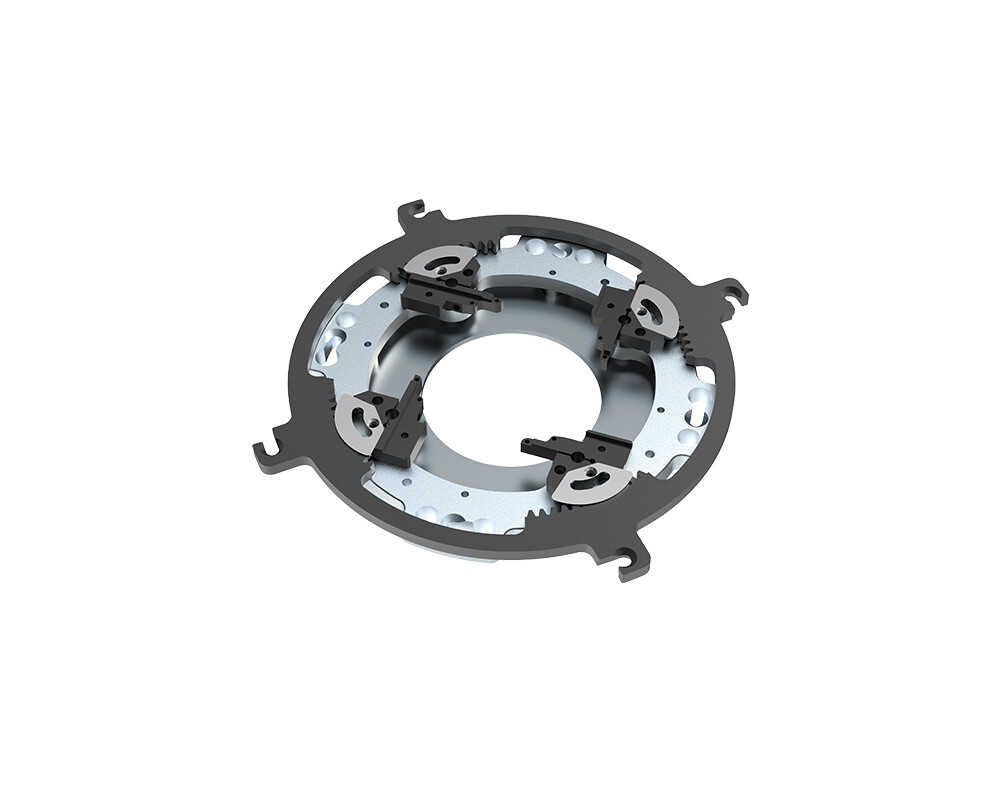

Labeling Machine Cutter Disc

Radial runout error of the rotary blade destroys the dynamic shear clearance, causing stringing or tearing when cutting the film, directly resulting in label placement deviation and jamming scrap.

The core of eliminating the stringing defect lies in the ultimate control of dynamic shear clearance and film fracture mechanics. Through high-precision CNC cylindrical grinding, we dead-lock the radial runout of the blade's outer diameter to within 0.01mm, ensuring that a perfectly uniform micro-shear clearance is maintained between the rotating blade and the fixed anvil knife during high-speed operation of hundreds of bottles per minute. Simultaneously, the blade's cross-section is sharpened with specific geometric parameters; the combination of the shear angle and rake angle allows the localized shear stress to skyrocket above the yield limit of the PVC/PET film in a microsecond instant upon contact. This stress concentration forces the polymer material to undergo brittle fracture in an extremely short time before plastic flow can occur, physically severing the path of thermoplastic melt stringing caused by stretched molecular chains.

Rotary die-cutting blades and accessories that can be directly used as replacements for labeling, filling, and blow molding equipment of brands such as Sidel, Krones, KHS, and Tetra Pak.

At the rigid body dynamics level, the entire blade assembly undergoes G2.5 precision dynamic balancing verification before leaving the factory. This strict quality control reduces the centrifugal excitation force caused by mass eccentricity to an absolute minimum. This not only eliminates the high-frequency chatter of the spindle during high-speed rotation, preventing dynamic drift of the shear clearance, but also exponentially extends the anti-fatigue life of the blade bearings and the cutting edges. If you want to learn more about this product, please feel free to contact us for more information.
